Security and privacy go hand by hand and one of
the vital importance in the human life. As Internet is a knowledge
pool and a public network, but even then all are not invited, some are
extracted with the help of firewall. This
firewall
restricts the incoming and outgoing data traffic. It acts as
an excellent metaphor in the volatile and unsafe environment of Internet,
when viewed from security point of view. Or in the other words, we can
say that it is an electronic security barrier, that has emerged as the
most secure option so far in Internet to control the traffic between
the local and the global network.
Is firewall enough
to secure my network?
Keep remember that firewall is an integral part of any security program,
but it is not a security program in and of itself. If any data that
transits outside the firewall is subject to factors out of the control
of the firewall. So some other security program must also be incorporated.
When firewall is required?
If you are trying to connect a private network to a public network,
you need a firewall. Anyone who connects as a single computer to the
Internet via modem should have a personal firewall software.
Why firewall is required?
To increase the client and server security by:
Screening the traffic
Restrict the hosts
Restricting the applications/ protocols.
Where firewall is
to be placed?
Firewall is placed at the junction point of two networks.
Now, what firewall does?
It filters both inbound and outbound traffic by three means:
i) Address filtering - Firewall filters packets based
on the source and the destination addresses and port numbers.
ii) Protocol filtering - Firewall filters network traffic
by taking decisions on the behalf of protocols used.
iii) Filtering job can also be based on the packet attributes or state.

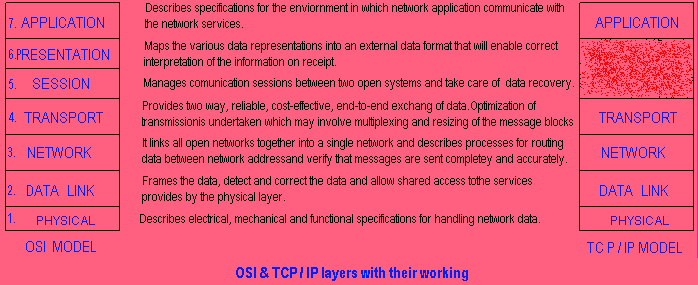

How does firewall work on OSI and TCP/IP
network models?
The OSI and TCP/IP reference models have much in common. Both are
based on the concept of a stack of independent protocol. Also, the
functionality of the layers is roughly similar.
Despite these fundamental similarities, the two models also have many
differences. It is important to note that we are comparing the reference
models here, not the corresponding protocol stacks.
| |
OSI reference model
|
TCP/IP reference model
|
| 1. |
OSI model has 7 layers. |
TCP/IP model has 5 layers. |
| 2. |
It is not spinal cord of Internet. |
Internet builds on TCP/IP suite foundation. |
|
3.
|
It was devised before, protocols were invented. This ordering
means that model was not biased towards one particular set of
protocols, which made it quite general. |
With TCP/IP, protocol come first, and model
was really a description of existing protocols. There was no
problem with protocols as with OSI.
|
|
4.
|
It supports both connectionless and connection-oriented communications
in the network layer, but only connection-oriented communication
in the transport layer. |
TCP/IP model has only one mode in the network layer - connectionless.
But, it supports both modes in the transport layer, giving the
users a choice. |
 |
Each layer has a particular task to do that enables the networks
to mix and match network protocols and physical supports. Firewall
operates at different layers to use different criteria to restrict
traffic. The lowest level at which a firewall can work is layer three
i.e. network layer in OSI model and Internet protocol layer as in
TCP/IP model.
Job of firewall at layer 3 is to find out that whether
the arrived packet is from reliable source or not. Its tasks end here
for this layer and are not concerned with the contents or any other
information associated with the packets.
Job of firewall at layer 4 - Here firewall knows slightly
about the packets, and are able to grant or deny access depending
on more complex and reasonable criterias.
Job of firewall at layer 5 - Firewall knows much more
about what is going on and can be very selective in granting access.
As the layer goes on incrementing, the firewall becomes more superior.
But more secure the firewall is when packet is intercepted at lower
layers. I firewall the intruder is unable to pass layer 3, it is impossible
to control your operating system.
Firewall architecture
Firewall is the TCP/IP equivalent of a security gate at the entrance
to your company. All traffic (data) must pass through it, and the
security guard (firewall ) there allows only authorized people (data)
to pass into the facility (LAN).
Firewalls are broadly present with four architectures and can be
implemented by using any one of them :
1. Packet filters:
At Internet data travels in the form of packets. Packet is a series
of digital numbers that carries
- Data, acknowledgement, request/command from the originating system.
- Source and destination IP address and port.
- Information about protocols that handle the packet.
- Error checking information.
and much more.
Now, packet filtering firewall work at network layer of OSI model
or IP layer of TCP/IP model. These are usually part of routers. Router
is a device that receives packets from one network to another network.
The decision either to forward i.e. filter or drop down the packet
depends upon the following criterias
- Source and destination IP address.
- Source and destination port number.
- Protocols used.
These criterias are decided by the network administrator.
| Advantages |
| + Fast as don't examine data in the packets. |
| + Low impact on network performance. |
| + Ease of implementation. |
| + Low cost. |
| Disadvantages |
| - Flexibility suffers as all designated
packets or protocols are rejected from a filtered site. A fully
filtered site cannot be accessed at all from users within the
"trusted" network. |
| - Address information in a packet can
potentially be falsified or "spoofed" by the sender.
|
| - Complex to maintain. |
2. Circuit level gateway/ Stateful inspection
firewall / Circuit relay
It works at session layer of OSI model or TCP layer of TCP/IP model.
It validates connections before allowing data to be exchanged, depending
upon
- Source IP address and/or port
- Destination IP address and/or port
- Sequence number
- Time of day
- Protocol
- User
- Password
In a typical network, thousands of sessions may be occurring simultaneously.
Firewall keeps track of all the concurrent sessions. Each and every
packet is checked to ensure that it belongs to the current sessions.
Any packet that belongs it is filtered and the remaining existing
ones are rejected.
| Advantages |
| + Ensures that all packets must be part
of an authorized communication session. Therefore, a high level
protection is provided to the users communicating with system
external to the "trusted" network. |
| + Hides information about
protected networks. |
| + IP spoofing can be rendered much mire
difficult. |
| Disadvantages |
| - It requires additional hardware and
software and is not bundled with another existing network device. |
3. Application proxies / Application
gateway firewall
It works at application layer of OSI model and TCP/IP model and acts
as a proxy for application, performing all data exchanges with the
remote site on their behalf. This can render a computer behind the
firewall all but visible to the remote site. Incoming and outgoing
packets cannot access services for which there is no proxy.
It allows or disallows traffic according to the following rules
- Permitting some application specific commands and other not.
For instance http: post and get etc.
ftp, gopher, telnet etc.
- Limiting file access to certain types.
For instance filter all EXE and COM files.
- Varying rules according to authenticated user and
so forth.
| Advantages |
| + Can be used to log user activity and
logins. |
| + Provide higher degree of security. |
| Disadvantages |
| - Due to much computing resources network
performance goes down. |
| - Firewall must have proxy for each type
of protocol that can be used. It creates delay in implementing
if firewall doesn't support it. |
| - Setup can be very complex as required
detailed attention to the individual applications that use the
gateway. |
Mechanism of firewall
- Firewall acts as a gatekeeper between a companys' internal network
and the outside world. It examines the location from which the data
enters the system and then decides, based on the system and instructions,
whether to allow the information.
- In addition to gatekeeping, the firewall also monitors logging
of all the system activities and generation of reports for system
administration. A firewall product, smartwall
- alters the administrator via e-mail or paper about suspicious
online activity.
- Packet filtering mechanism - A router either allows
or denies the passage of data, after checking its header and contents
for conformance to a set of rules, that reflects security policy.
It checks the source and destination address and protocol port number(s)
for decision.
- NAT (Network Address Translation) - It hides the
internal address and network topology of its protected domain from
outside. NAT devices are [placed at borders of network domains.
It translated the global address into its local address.
